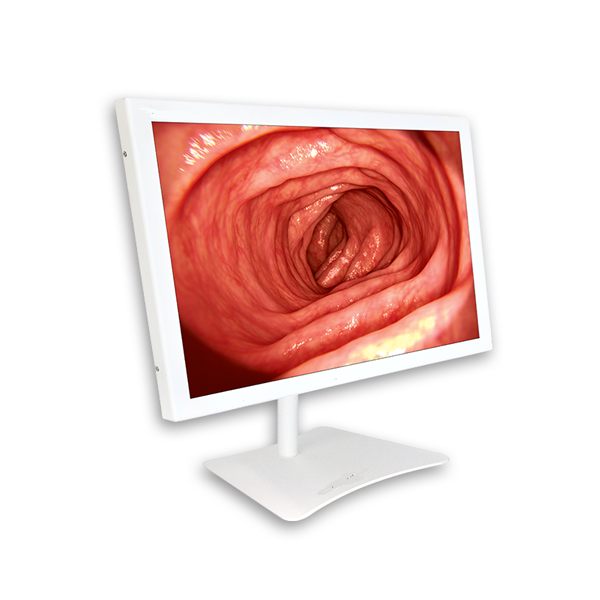

MV-DM24

24″ surgical display
FHD Resolution 1920×1080
Brightness: 400 cd/m2
Contrast: 1000:1
Inputs: HDMI, VGA, Composite Video
Applications: Laparoscopy, Endoscopy, Arthroscopy, Neuro-Spine Surgery Digital OR

SKU: MV-DM24 Categories: Medical Grade Monitor, Surgery Room Equipment

Screen Technology	TFT AM LCD
Active Screen size (Diagonal)	24″
Active screen size (H x V)	527.04 X 296.46 mm
Aspect Ratio	16:09
Resolution	1920 x 1080
Pixel Pitch	0.2745 x 0.2745 mm
Viewing Angle (H x V)	178° , 178 °
Maximum Luminance	300 cd/m²
Contrast Ration	1000:1
Color	16.7 Million
Response Time (Tr+Tf)	20 ms
Video Input Signals	Digital-DVI Analog- VGA ,composite video & S-video

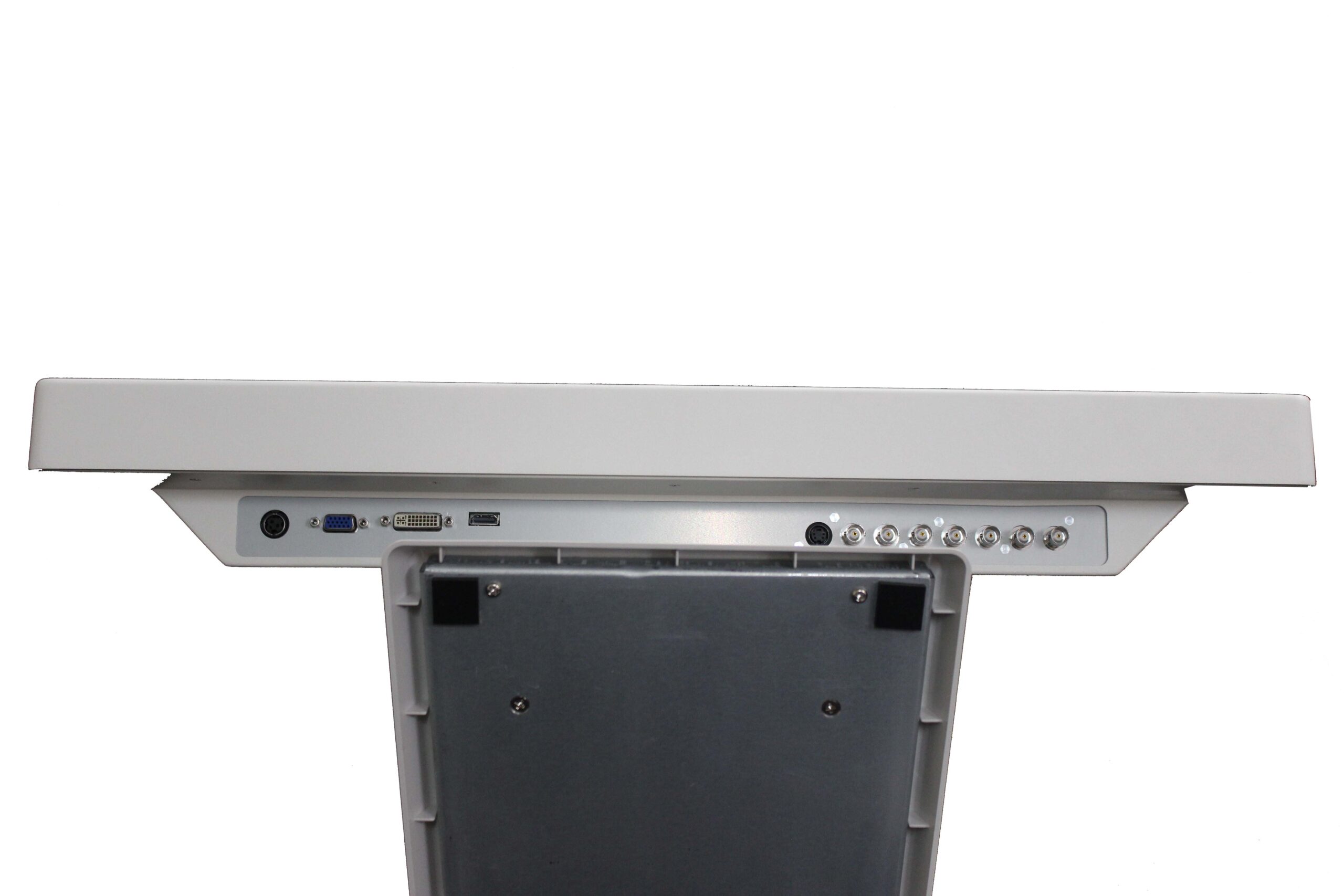

Video Out Signals	Digital DVI analog 15 pin D-Sub, RCA & mini Din
other mode	PIP & POP
Power Requirements	AC 240V
Power Consumption	70 W Max
Power Saving	EPA, VESA Standard
Housing Color	White
Housing Material	Metal
operating temperature	0 to +50°C
Storage Temperature	-20 to +60°C
Relative humidity	10% to 90% (Non-Condensing)
Mounting standard	VESA (100mm)
